capaNCDT

Extensive sensor portfolio with unsurpassed precision

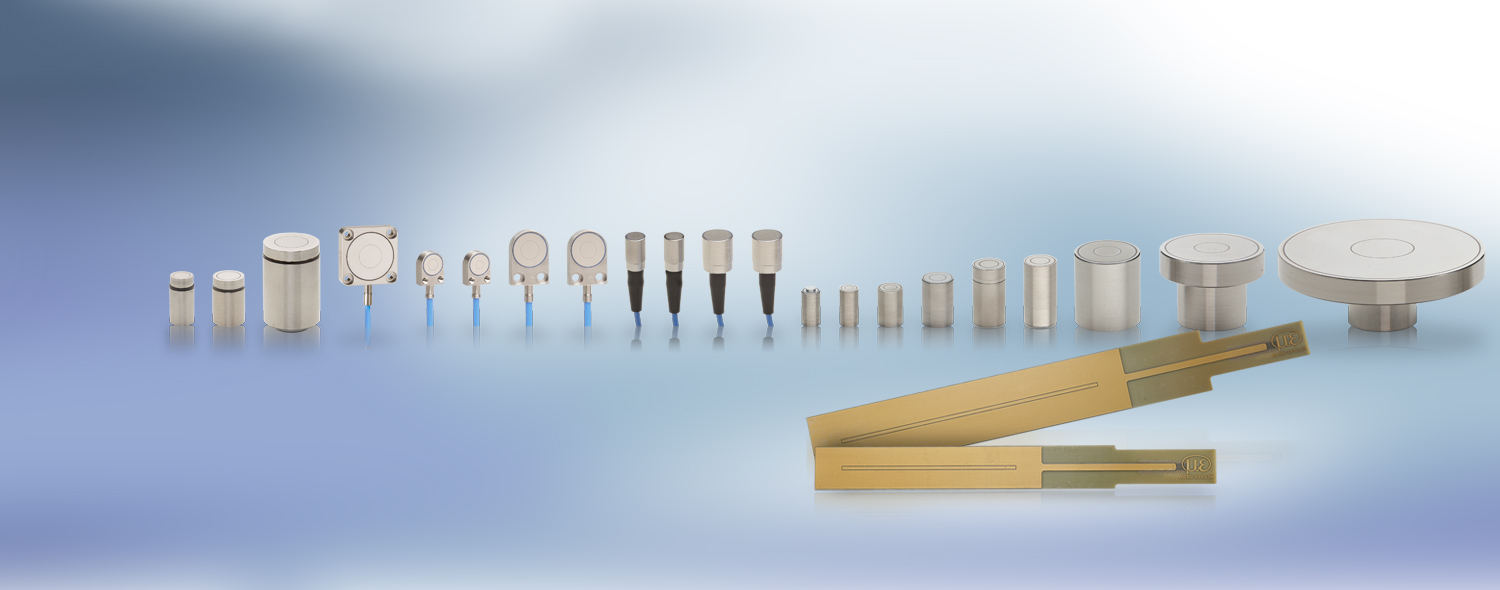

Capacitive displacement sensors

Micro-Epsilon offers a comprehensive range of capacitive displacement sensors. These capacitive sensors are used for displacement, position and also for thickness measurements. Different sensor designs enable optimal integration into machines and systems. The capaNCDT sensors achieve best values in terms of linearity, temperature stability and resolution. While sub-micrometer precision is reached in industrial environments, even sub-nanometer accuracy can be achieved in clean environments.

Kontakt
logo

Podrobnosti

  1. Most powerful sensor portfolio in the world

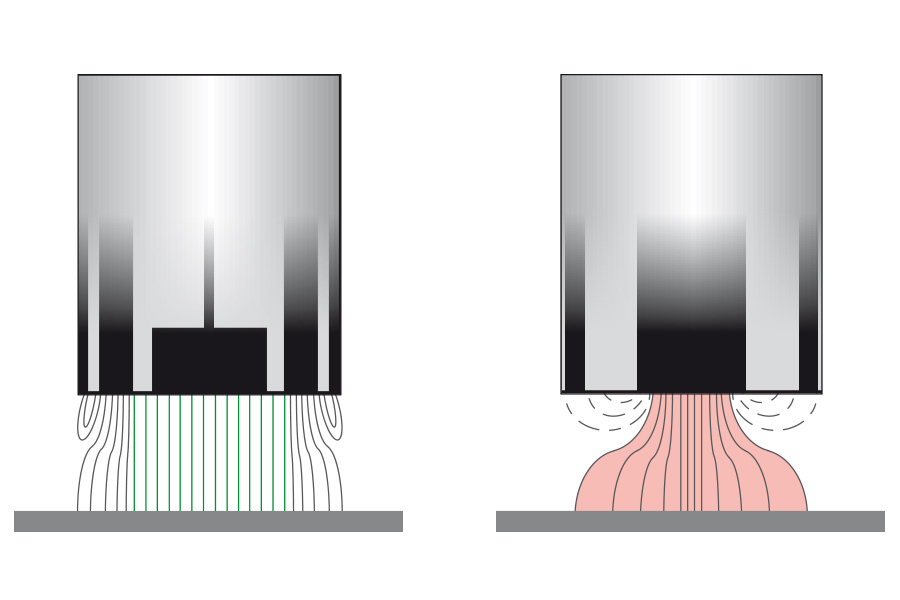

  2. Non-contact distance and thickness measurements with highest measurement accuracy and signal stability
  3. Wide range of applications from industrial environments to vacuum and clean room
  4. High interference immunity to magnetic fields
  5. Extremely high temperature and long-term stability
  6. Vacuum-compatible versions
[]
Kontakt
Ing. Juraj Devečka
+421 911 298 922
Contact form
Ihre Anfrage zu: {product}
Please enter the result of the calculation below. This will avoid spam.
captcha
* Povinné informace
S vašimi údaji zacházíme důvěrně. Přečtěte si prosím naše prohlášení o ochraně osobních údajů

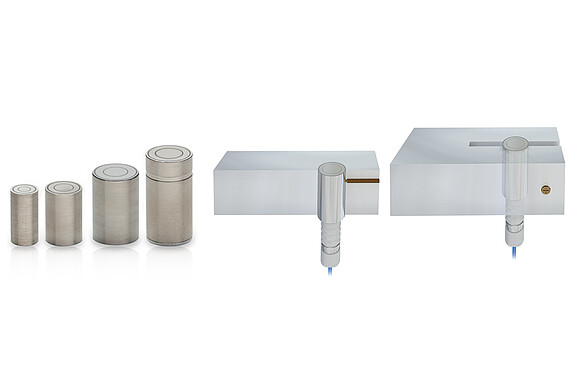

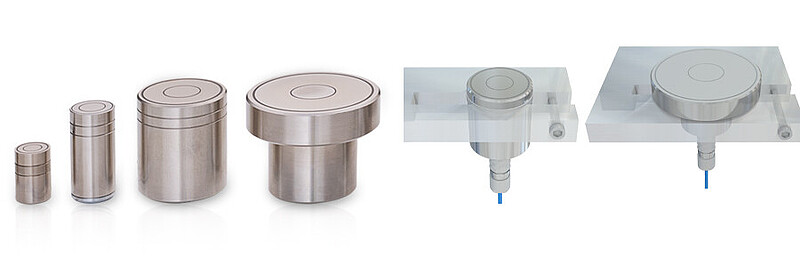

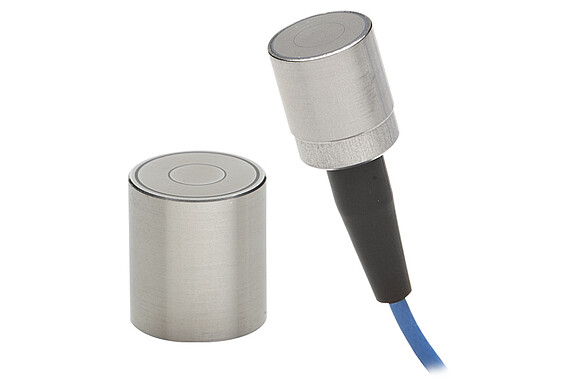

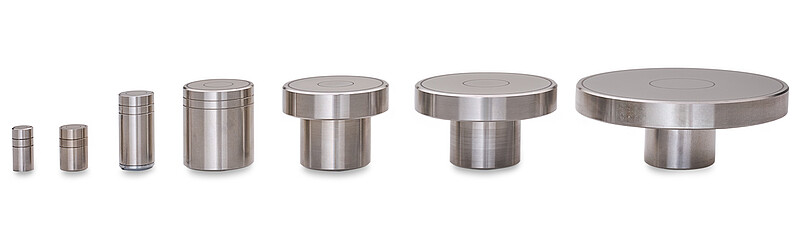

Cylindrical sensors with female connector

Characteristics

  1. Measuring ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 1.25 | 2 | 3 | 5 | 10

  2. Linearity from 0.15 µm

  3. Temperature range -50 ... +200 °C

  4. Target diameter from Ø 3 mm

  5. capaNCDT controller for double the measuring range (reduced accuracy) or half the measuring range (increased accuracy)

  6. Vacuum-compatible versions available

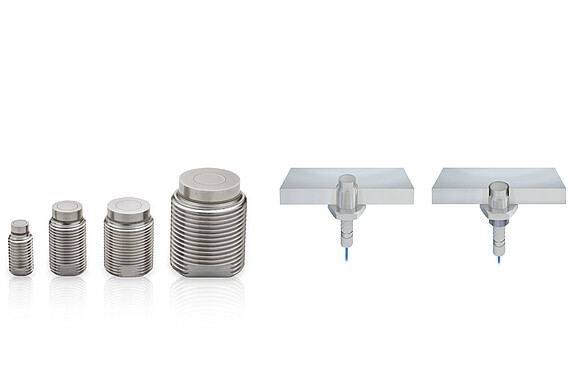

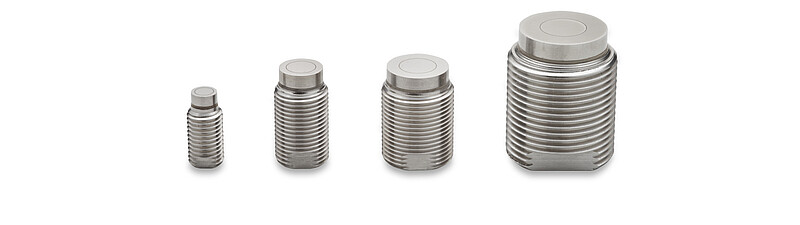

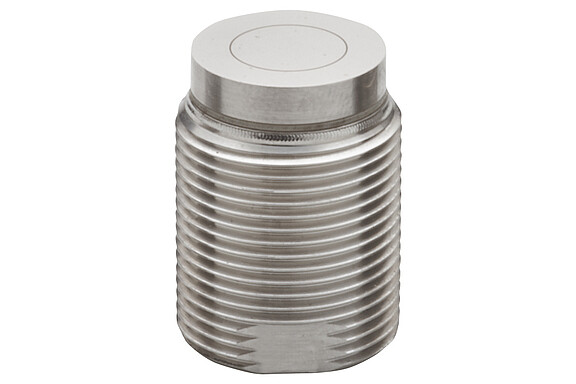

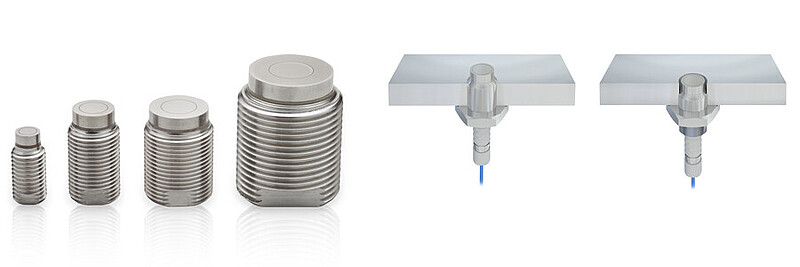

Cylindrical sensors with thread and socket

Characteristics

  1. Measuring ranges (mm): 0.5 | 1.25 | 2 | 3

  2. Linearity from 0.5 µm

  3. Temperature range -50 ... +200 °C

  4. Target diameter from Ø6 mm

  5. capaNCDT controller for double the measuring range (reduced accuracy) or half the measuring range (increased accuracy)

  6. Thread for extremely stable installation

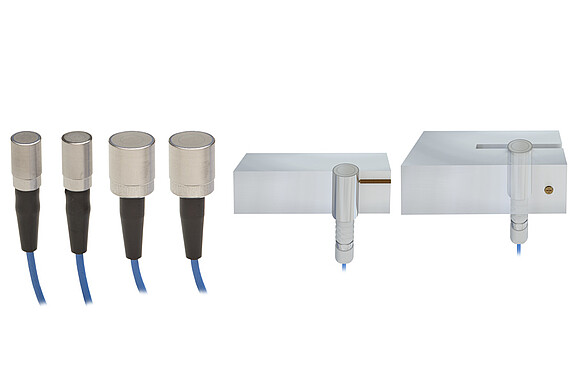

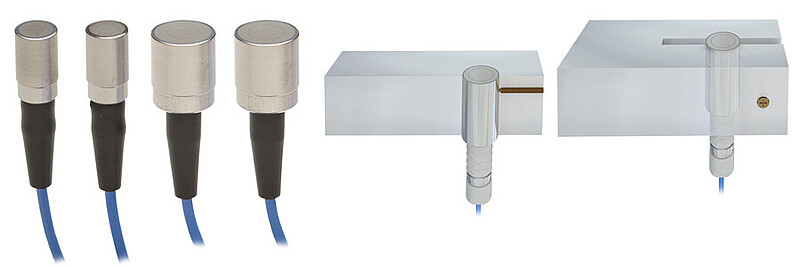

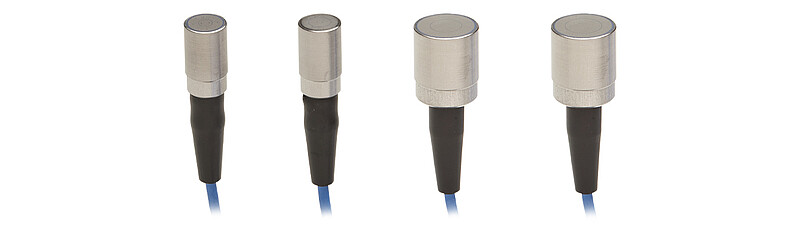

Cylindrical sensors with integrated cable

Characteristics

  1. Measuring ranges (mm): 0.1 | 0.2 | 0.25 | 0.5 | 1 | 1.2 | 2

  2. Linearity from 0.054 µm

  3. Temperature range -50 ... +200 °C

  4. Target diameter from Ø7 mm

  5. capaNCDT controller for double the measuring range (reduced accuracy) or half the measuring range (increased accuracy)

  6. Vacuum-compatible versions available

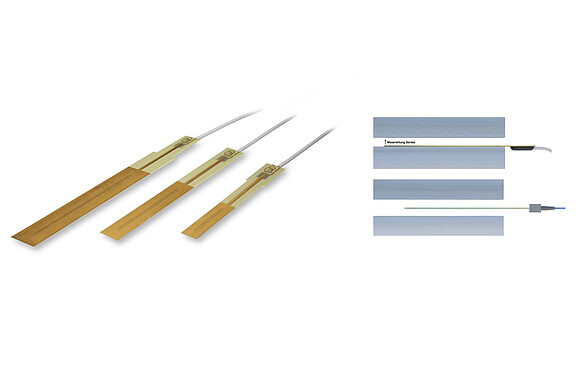

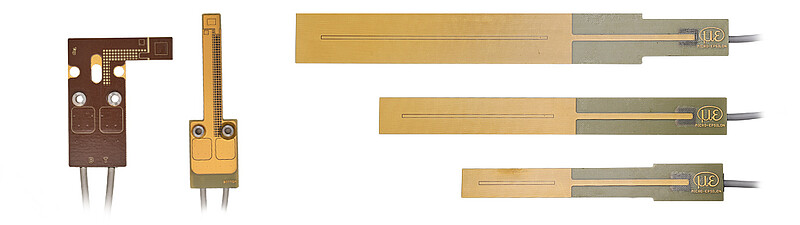

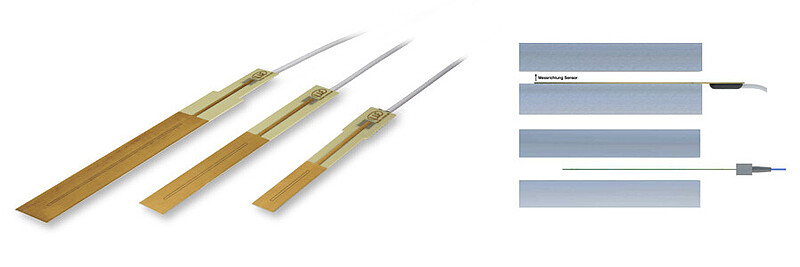

Gap sensors

Characteristics

  1. Measuring ranges (mm): 0.5 | 1

  2. Linearity from 0.5 µm

  3. Temperature range -50 ... +100 °C

  4. Target diameter from approx. 8 x 9 mm

  5. Ideal for gap measurement

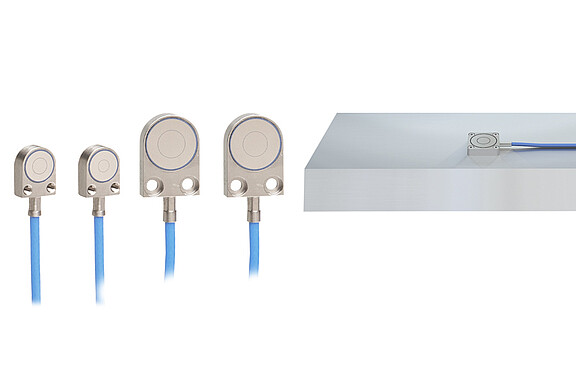

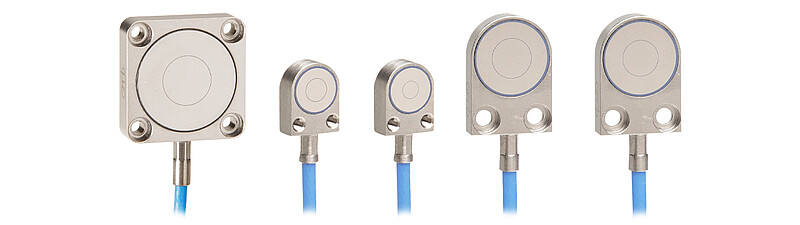

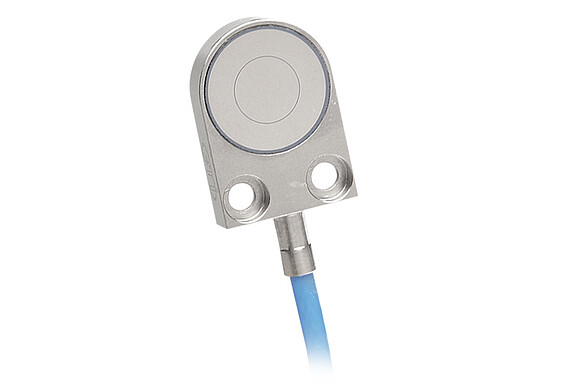

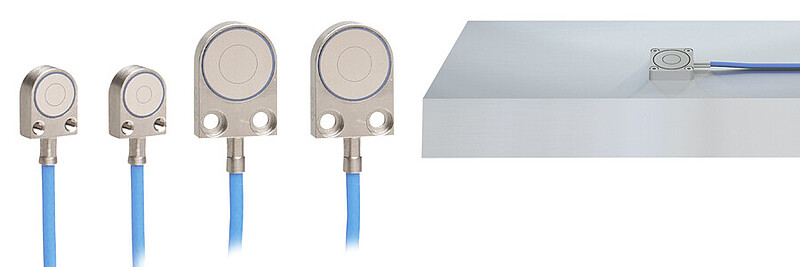

Flat sensors with integrated cable

Characteristics

  1. Measuring ranges (mm) 0.2 | 0.5 | 1 | 1.2 | 2 | 3

  2. Linearity from 0.05 µm

  3. Temperature range -50 ... +200 °C

  4. Target diameter from Ø7 mm

  5. capaNCDT controller for double the measuring range (reduced accuracy) or half the measuring range (increased accuracy)

  6. Vacuum-compatible versions available

  7. Flat design ensures space-saving installation

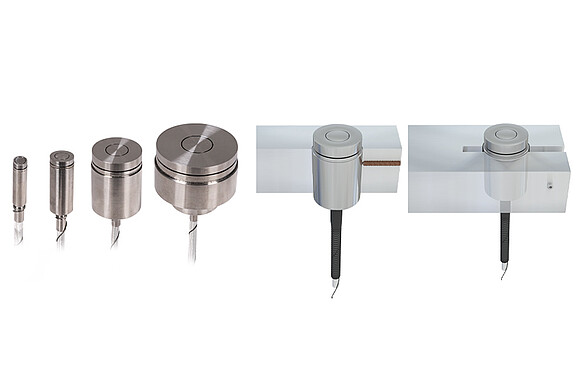

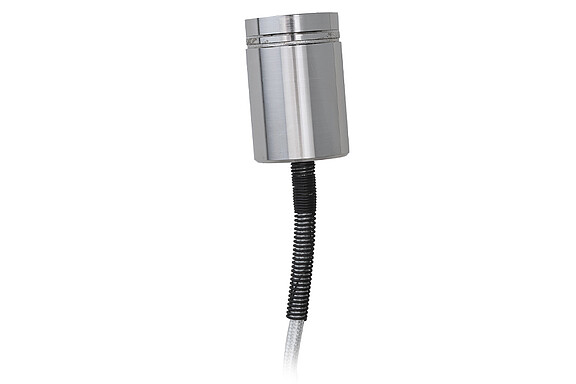

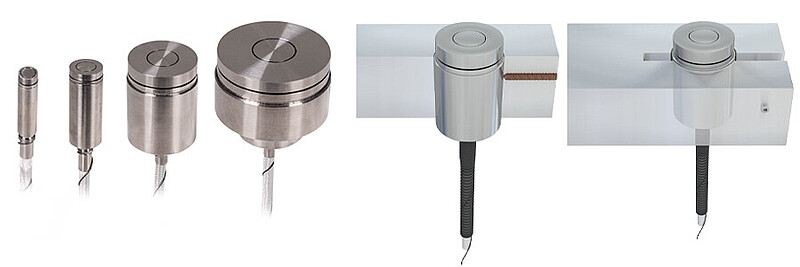

Capacitive high temperature sensors and installation situation

Characteristics

  1. Measuring ranges (mm): 1 | 2 | 5 | 10

  2. Linearity from 0.5 µm

  3. Wide temperature range -50 ... +800 °C

  4. Target diameter from Ø8 mm

  5. Double measuring range (reduced accuracy) or half measuring range (increased accuracy) via capaNCDT controller
