interferoMETER IMS5420-TH

Hochpräzise Dickenmessung von Siliziumwafern

White light interferometer for high precision wafer inspection

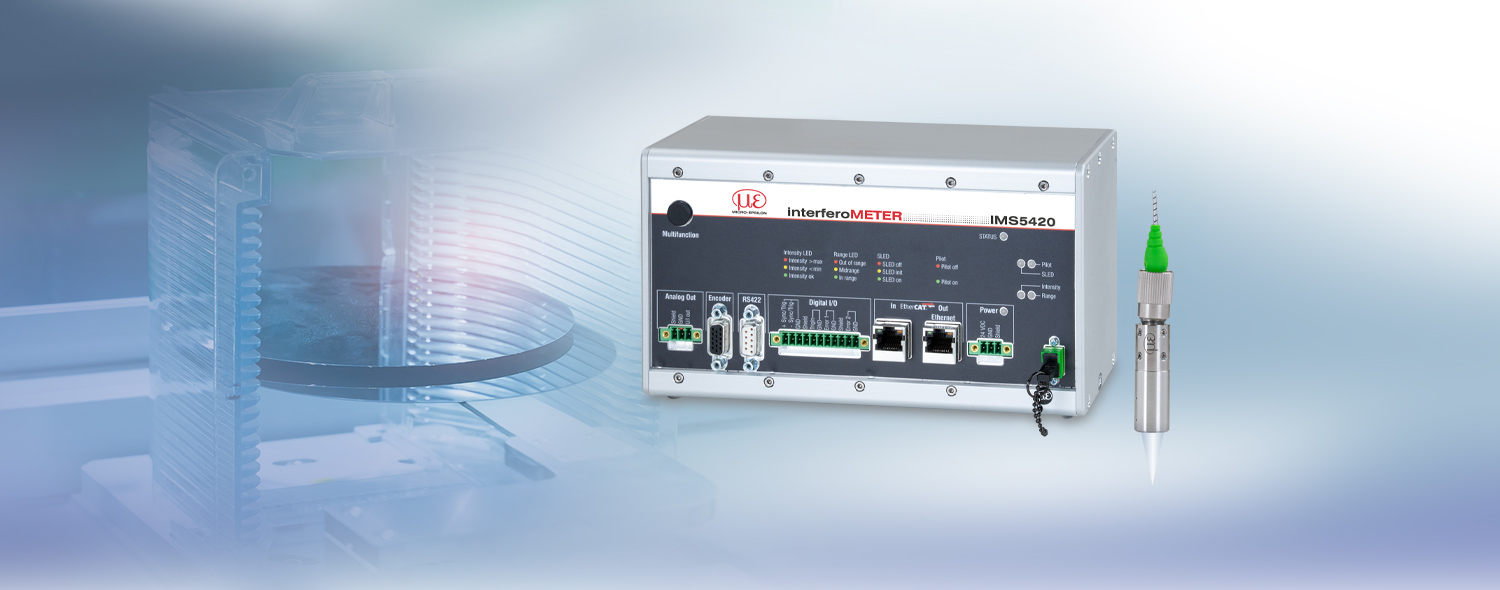

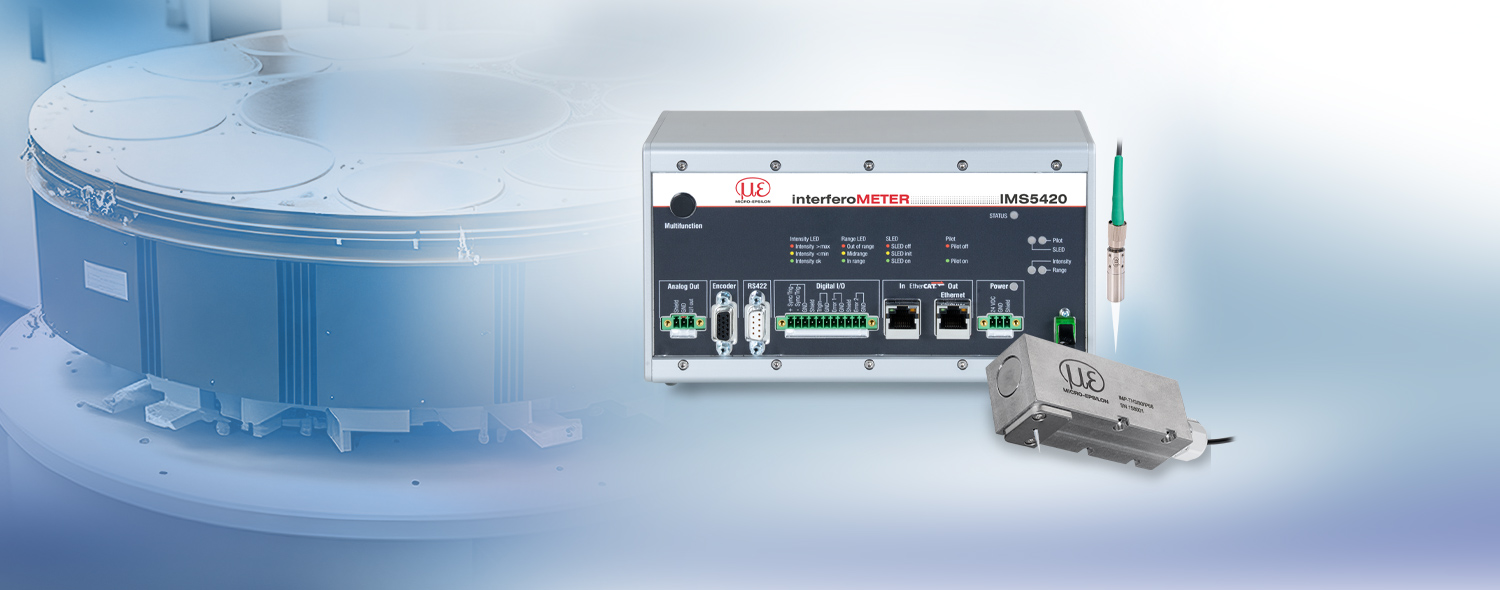

The IMS5420 is a high-performance white light interferometer for non-contact thickness measurement of monocrystalline silicon wafers. The controller has a broadband superluminescent diode (SLED) with a wavelength range of 1,100 nm. This enables the thickness measurement of undoped, doped and highly doped SI wafers with only one measuring system. The IMS5420 achieves a signal stability of less than 1 nm. The thickness can be measured from a distance of 24 mm.



  1. Nanometer-accurate thickness measurement of undoped, doped and highly doped wafers
  2. Multi-peak: acquisition of up to 5 layers with an SI thickness of 0.05 up to 1.05 mm
  3. High resolution in z-axis of 1 nm
  4. Measuring rate up to 6 kHz for fast measurements
  5. Ethernet / EtherCAT / RS422 / PROFINET / EtherNet/IP
  6. Easy parameterization via web interface
Ing. Juraj Devečka
Contact form
Ihre Anfrage zu: {product}
Please enter the result of the calculation below. This will avoid spam.
* Povinné informace
S vašimi údaji zacházíme důvěrně. Přečtěte si prosím naše prohlášení o ochraně osobních údajů

Precise wafer thickness measurement

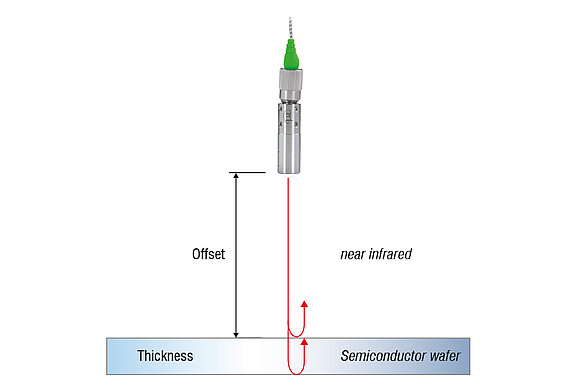

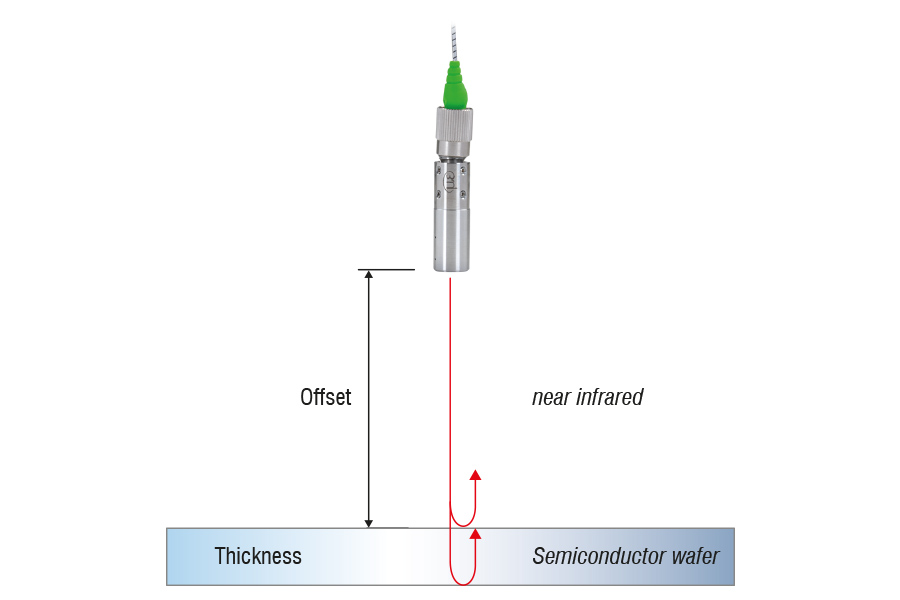

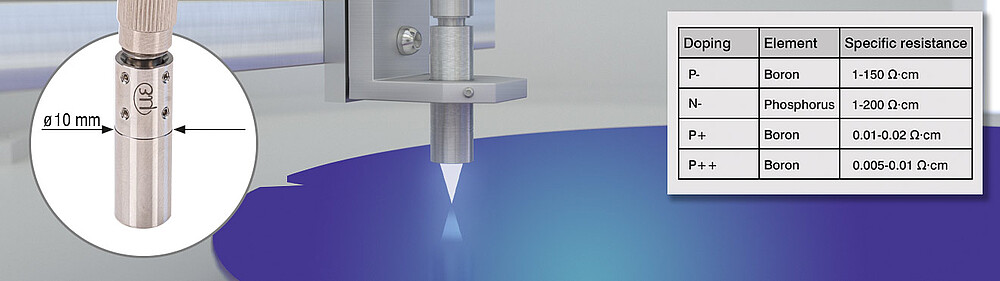

Due to the optical transparency of silicon wafers in the wavelength range of 1.100 nm, the IMS5420 interferometers can precisely detect the thickness. In this wavelength range, both undoped silicon and doped wafers provide sufficient transparency. Therefore, wafer thicknesses up to 1.05 mm can be detected. The measurable thickness of the air gap is even up to 4 mm.

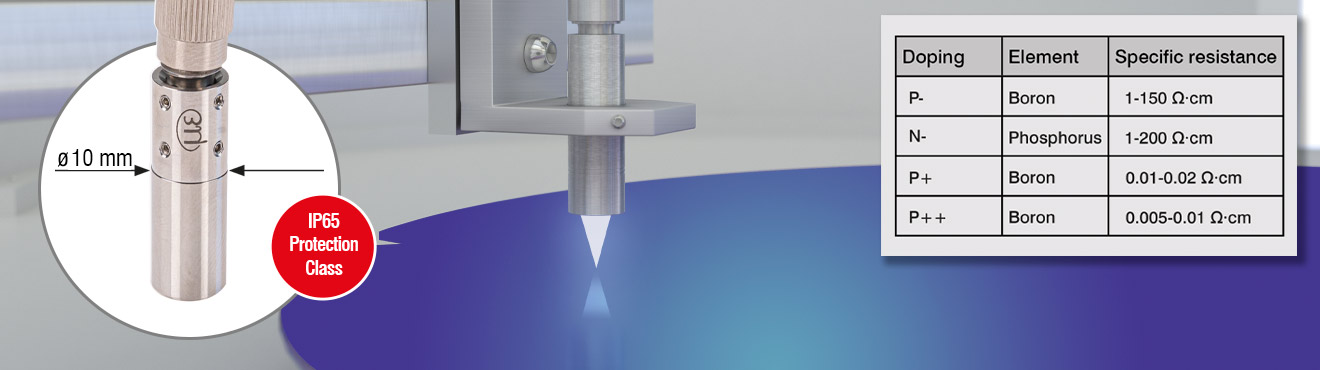

The IMS5420 interferometer enables the thickness measurement of undoped, doped and highly doped silicon wafers and thus offers a wide range of applications. This wafer thickness measuring system is ideal for the measurement of monocrystalline silicon wafers with a geometric thickness of 500 to 1050 µm and a doping of up to 6 m Ω cm. Even with highly doped wafers, thicknesses up to 0.8 mm can be measured. This results from the decreasing transparency with increasing doping.

Precise thickness measurement during lapping

In wafer fabrication, a crystalline silicon ingot is cut into thin slices of about 1 mm. The discs are then ground and lapped to obtain the desired thickness and surface finish. To achieve high process stability, interferoMETERs are used for inline thickness measurement in lapping and grinding machines. Due to its compact design, the sensor can also be integrated in confined installation spaces. The thickness values are used for machine control as well as for quality control of the wafer.

Model Measuring range /
Start of measuring range
Linearity Number of measurable layers Fields of application
IMS5420-TH24     0.05 ... 1.05 mm (for silicon, n=3.82)
0.2 ... 4 mm (for air, n=1) / approx. 24 mm with a working range of approx. 6 mm
< ±100 nm 1 layer Inline thickness measurement, e.g. after grinding or polishing.
IMS5420MP-TH24 < ±100 nm for one layer
< ±200 nm for additional layers
up to 5 layers Inline thickness measurement, e.g. for quality control of the coating thickness after coating
IMS5420/IP67-TH24 < ±100 nm 1 layer Industrial inline thickness measurement during lapping and grinding


Moderní rozhraní pro integraci do strojů a systémů

Řídicí jednotka má integrovaná rozhraní Ethernet, EtherCAT a RS422. Umožňuje připojení enkodéru, analogových výstupů, synchronizačních vstupů a digitální I / O. To znamená, že interferometr výchovy.
