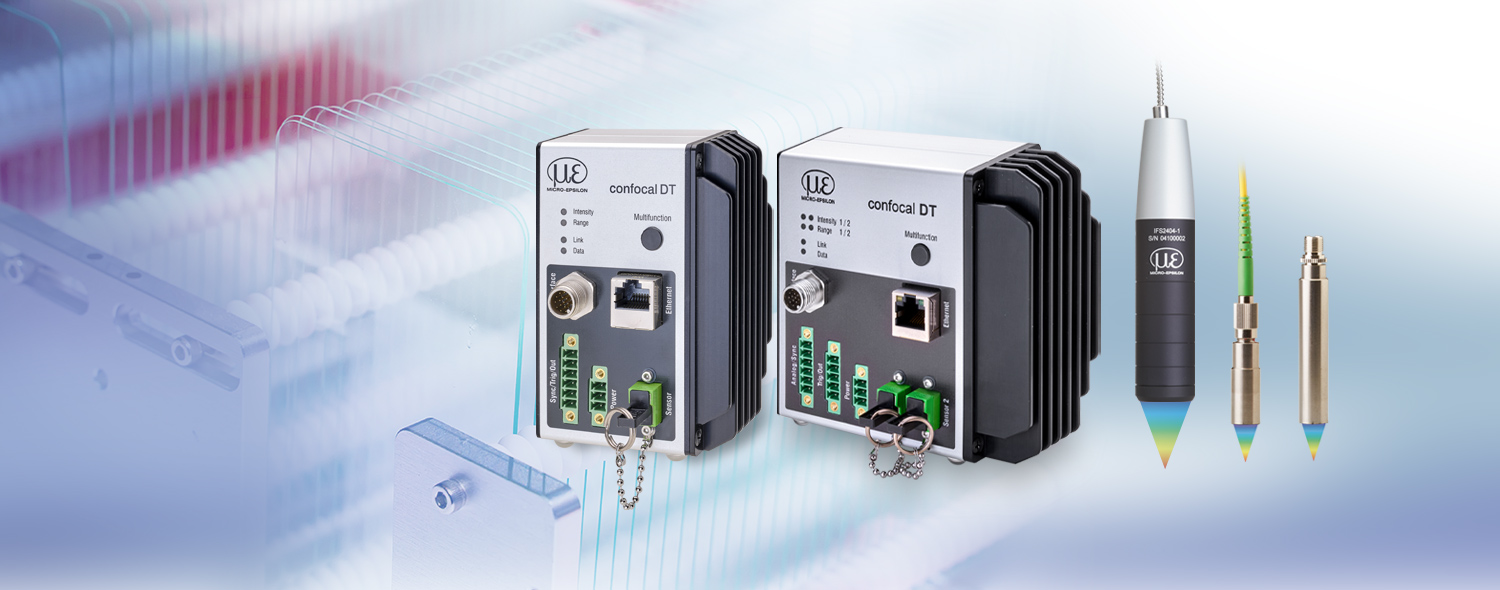

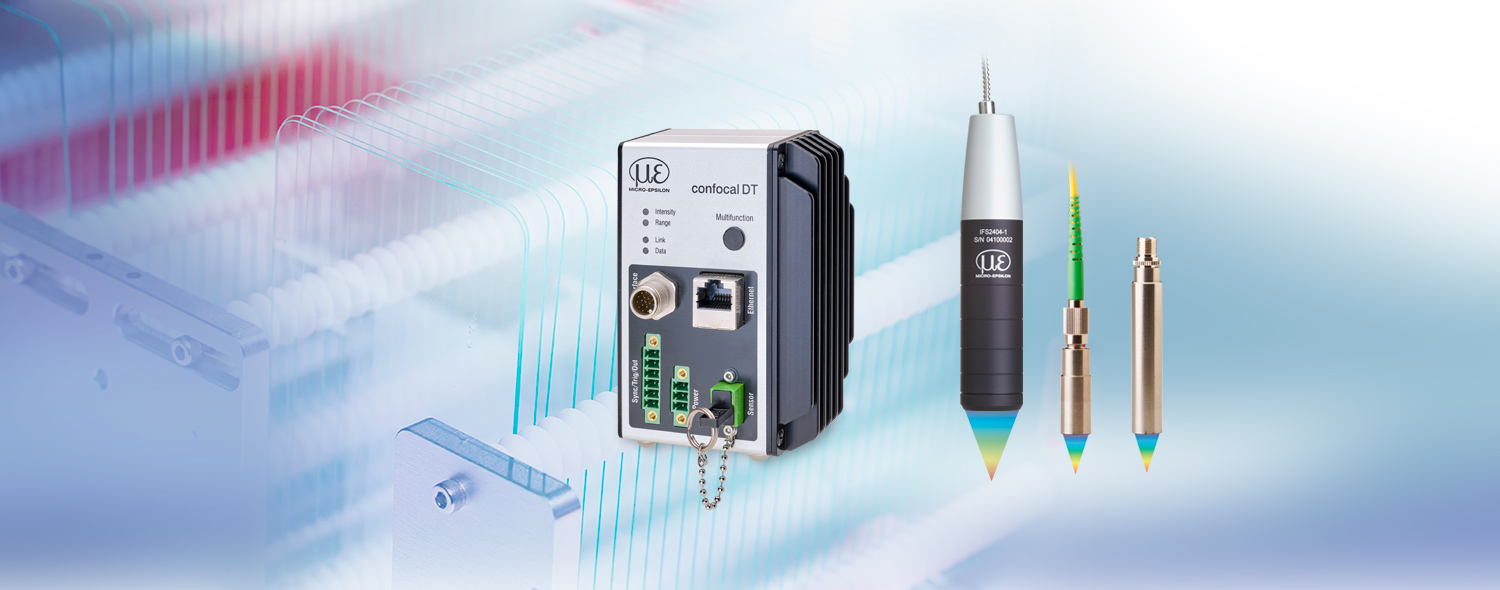

High-performance confocal controllers for precise and fast measurement tasks
The IFC2416 controllers impress with a high measuring rate of 25 kHz and exceptional light intensity. This enables precise and stable measurements at high speed - even on challenging materials and surfaces. Their compact design makes them the ideal solution for high-resolution distance and thickness measurements in almost all industrial sectors - from production lines to semiconductor machine construction. Thanks to the multi-peak option, even up to 5 layers of transparent objects can be measured. But the focus is on versatility: The IFC2416 controller is compatible with a numerous sensors so that the measuring range, offset distance and special properties such as vacuum suitability, measuring angle or beam path can be flexibly adapted.
Maximum precision. Maximum flexibility. Powerful in any environment.
Characteristics
- High-precision measurements with 2 nm resolution
- Adjustable measuring rate up to 25 kHz for highly dynamic measurements
- Small controller design
- IP40 aluminum housing
- Numerous interfaces for easy integration: Ethernet, RS422, Industrial Ethernet
- Analog output (current & voltage)
- 2 or 3 encoder inputs and switching output
- Compatible with all confocalDT sensors (measuring ranges from 0.1 to 30 mm)
- Ideal for series applications and OEM

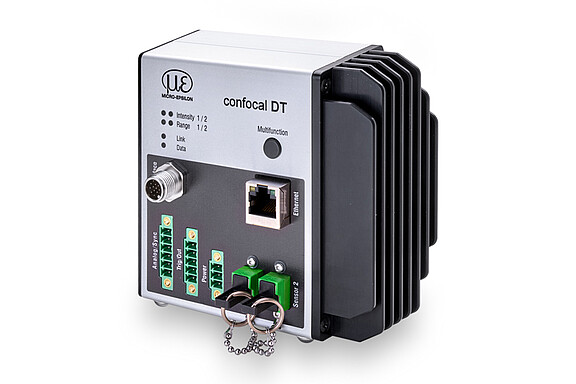

Developed for industry, OEM & automation
Equipped with various interfaces, the controller offers maximum flexibility for integration into machines and systems. A robust IP40 aluminum housing ensures maximum protection even under harsh conditions, so that highest precision and signal stability can be achieved. The excellent price-performance ratio enables economical solutions from small to large series.

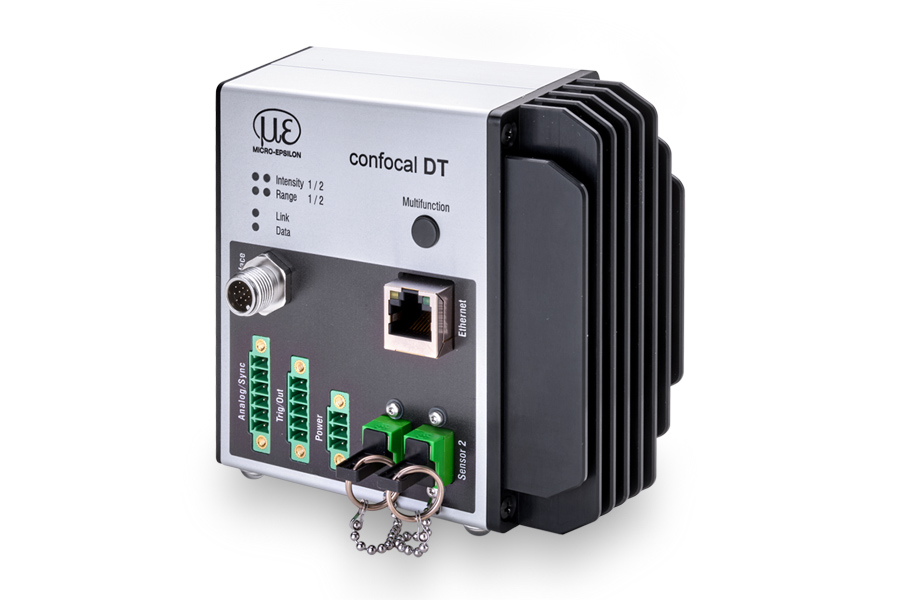

Precision meets compactness
With its extremely compact and unique design, the controller requires hardly any space and therefore fits into even the smallest control cabinets. Quick and easy mounting on a DIN rail facilitates integration into installations and systems. At just 460 grams, the controller is also extremely lightweight.
Simple operation via web interface
Due to a user-friendly web interface, no additional software is necessary to configure the controller and the sensors. The web interface can be accessed via Ethernet and provides set up and configuration options. For thickness measurements, materials are stored in an expandable materials database.
Indikační a přepočítací jednotky

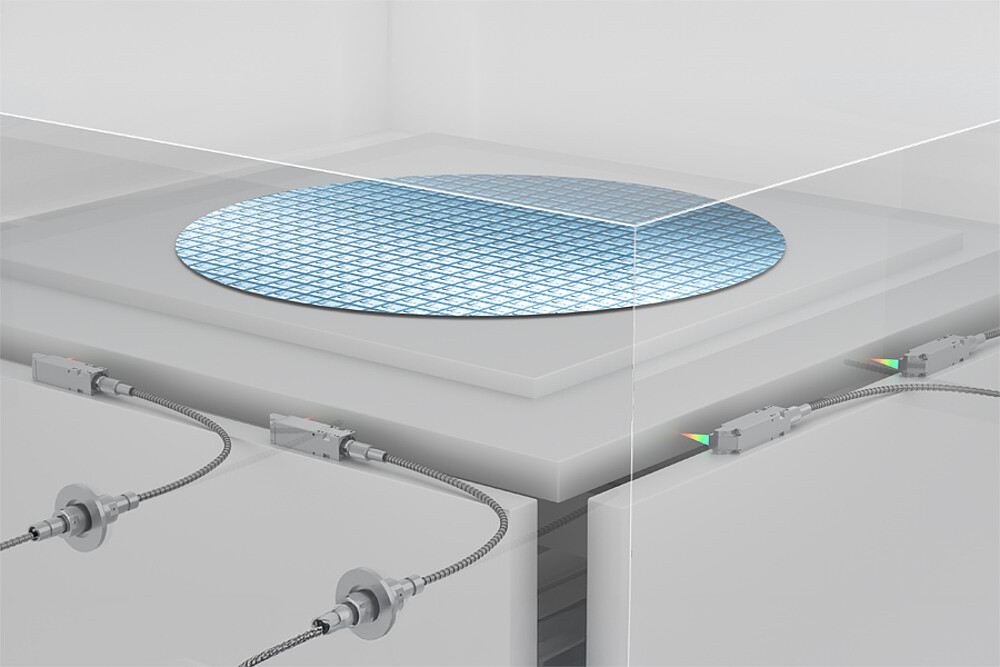

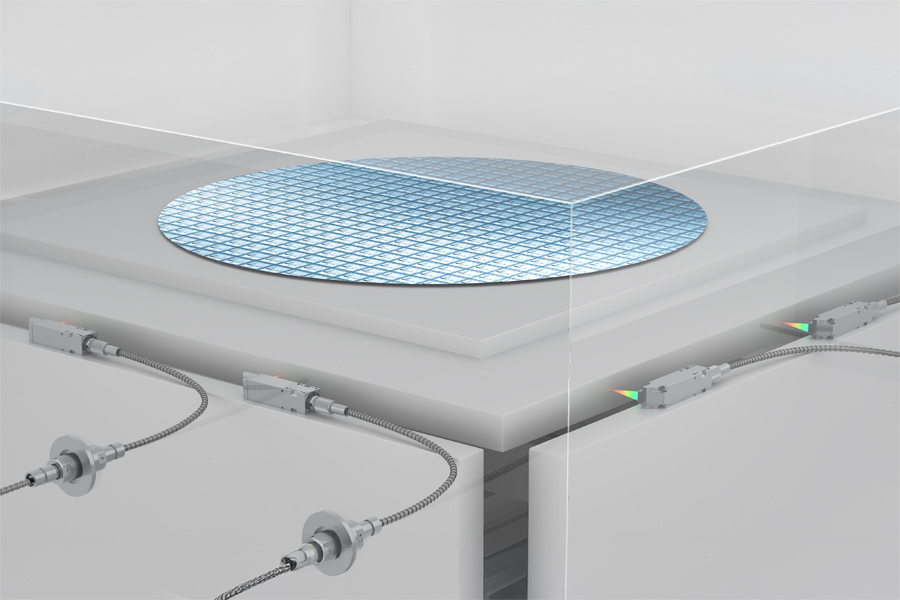

Application examples
