Scalable systems for the thickness measurement of electrode film

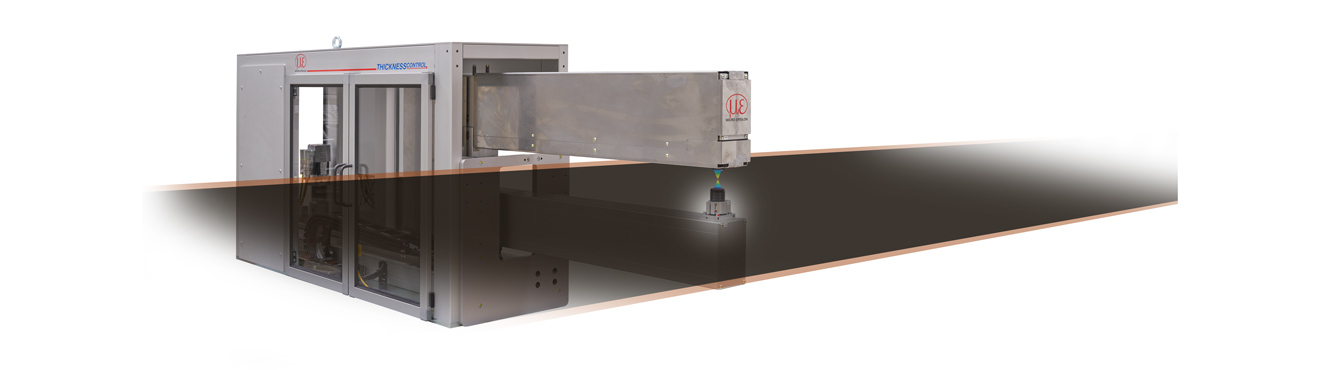

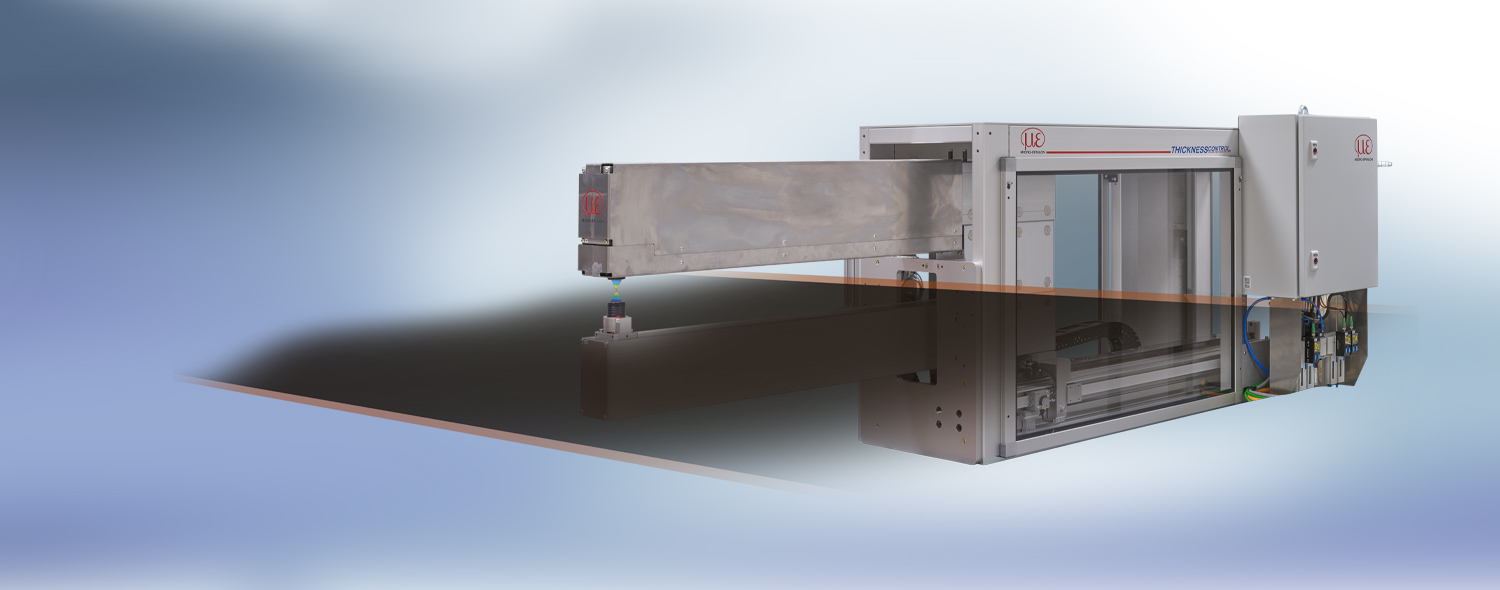

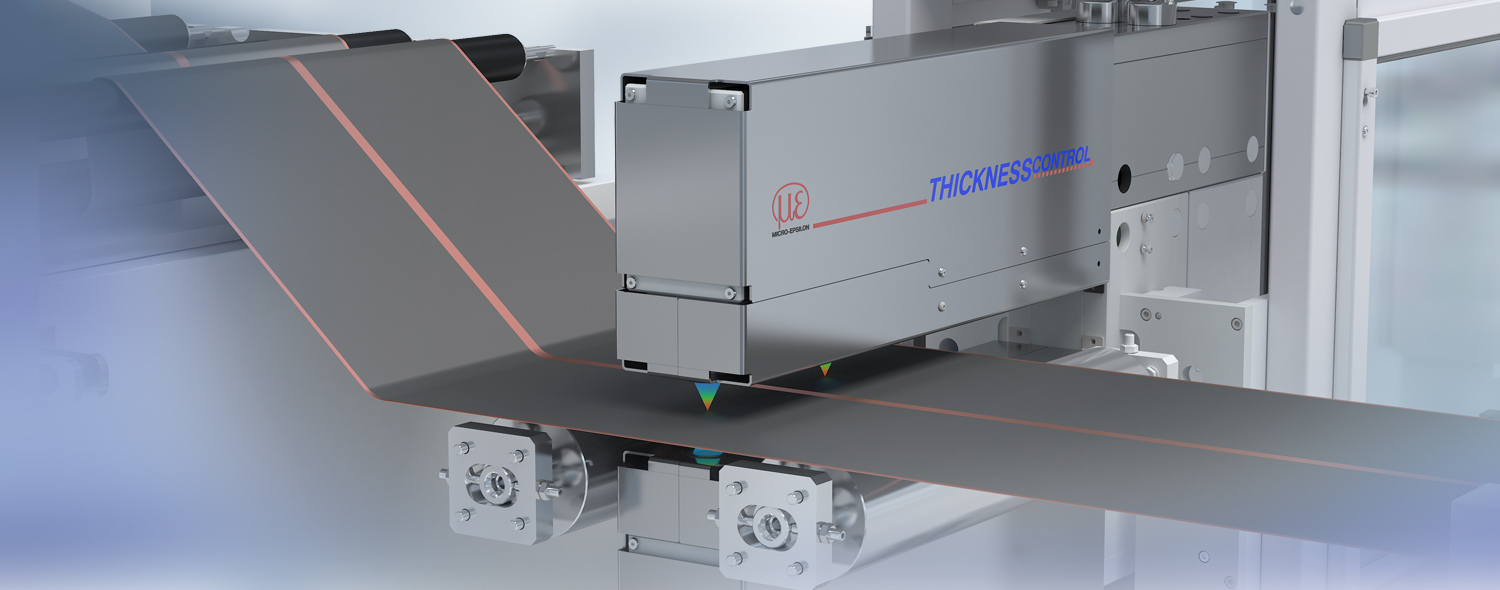

Micro-Epsilon offers a wide range of thickness measuring systems for different requirements and fields of application in coating lines. The thicknessCONTROL C-frames are designed for very harsh environments such as in dry coating. Their robust frame and the integrated temperature compensation feature ensure high measurement accuracy even in high ambient temperatures. In addition, the systems are available in different application-specific designs for various film widths with up to 8 measurement tracks.
Powerful analysis and control software

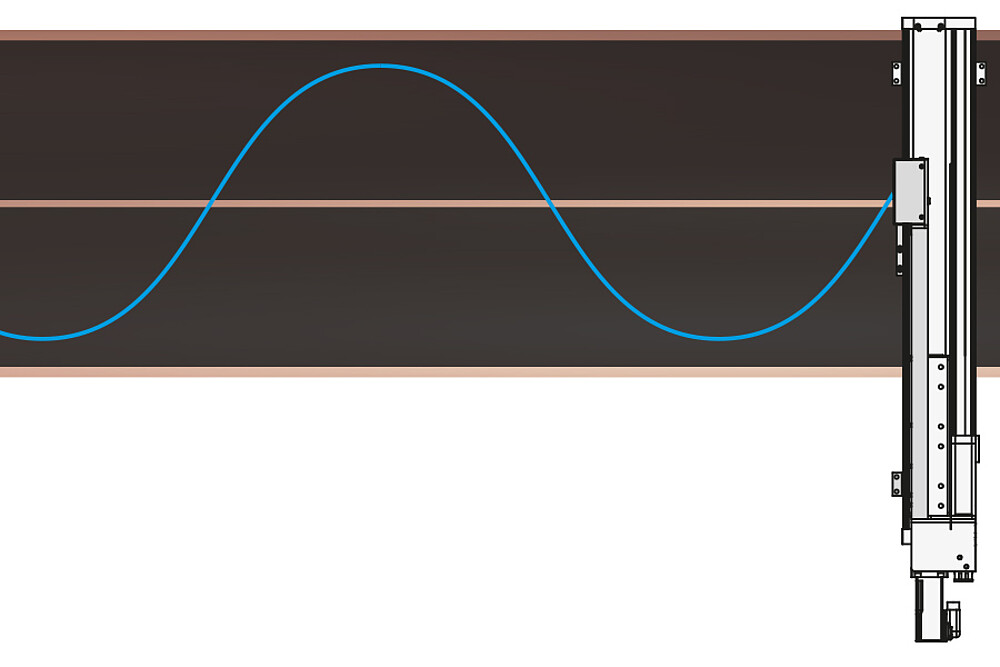

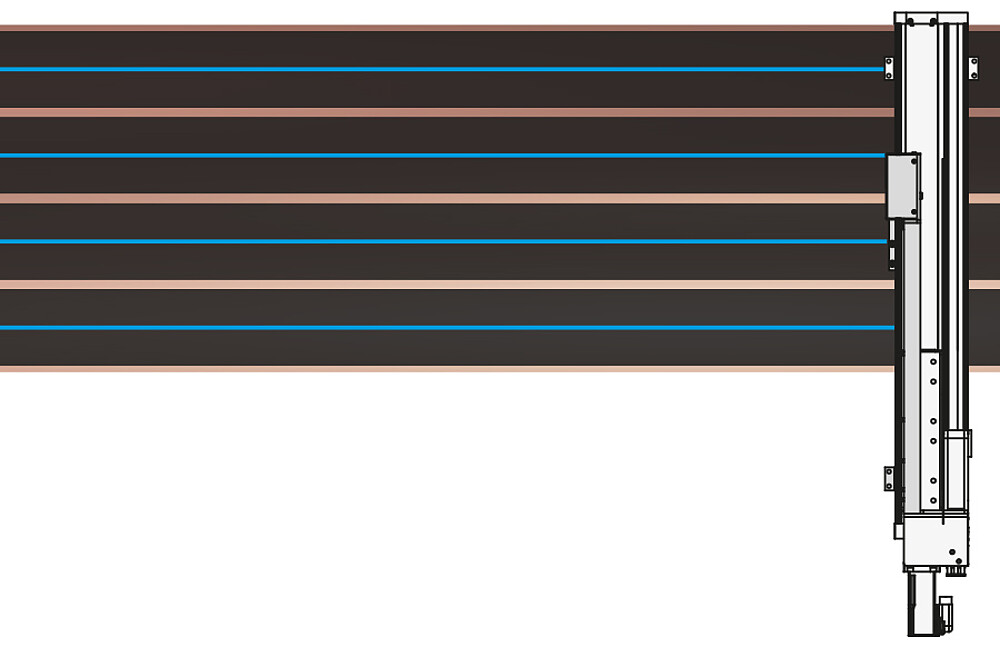

The thicknessCONTROL systems are comprised of an integrated linear unit including motor control, a compact bus terminal box, an automatic calibration unit as well as a multi-touch PC with pre-installed software. The software enables different measurement modes such as fixed track thickness measurement at any position, measurement of the thickness profile, measurement of several longitudinal trends, an SPC package and automated verification of the measuring system's capability.
